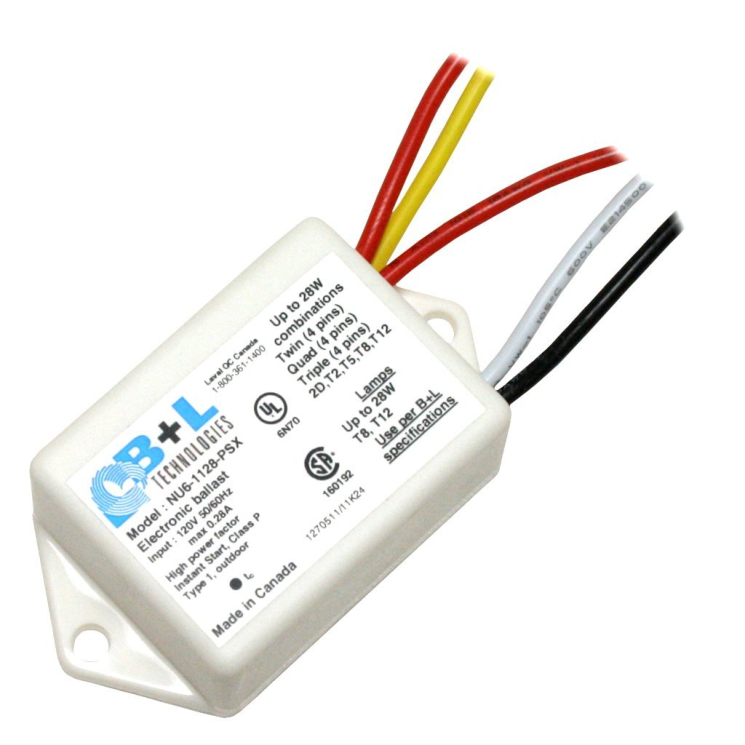

NU6-1128-PSX 120V UPTO 28W 4-PIN CFL SIDE

The Nuance 6 electronic ballast provides the flexibility required by modern lighting fixture designs. The size of a match box, the Nuance 6 ballast, will operate a wide range of compact and linear lamps to suit many of your 120V ,277V or 347V applications. It can power up 1 or 2 lamps up to a 28W combination. Unlike many other ballasts on the market, the Nuance 6 is designed to operate lamps independently in a 2 lamp application. As a result, if a lamp is defective, the remaining lamp will stay on. It also allows to replace the defective lamp without power interruption. This feature will facilitate lamp maintenance. General Specifications 9 Very small plastic casing 9 Will power many type of lamps 9 Input 120V, 277V or 347V 50/60Hz 9 Instant start (120V), rapid start (277 and 347V) 9 High power factor >.9 9 UL (Class P) outdoor Type 1 9 End of lamp life (EOL) protection for 277V and 347V models only Remote mounting: 7.6m (25ft) 9 Maximum ambient temperature: 40�C 9 Maximum casing temperature: 70�C (•tc) 9 Minimum starting temperature: -10�C 9 Ideal for infrequent on/off applications 9 Can be relamped without power interruption 9 Options available: Casing format RFI filter (120V only) 9 Open cathode voltage: 415V 9 Sound rating: A
