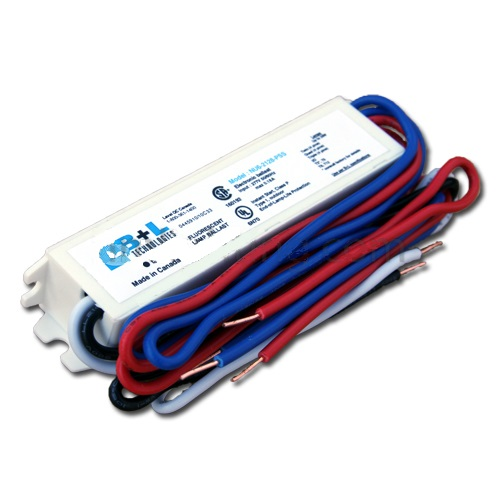

NU6-2128-PSS 277V UPTO 28W 4-PIN SIDE SLIM

The Nuance 6 electronic ballast provides the flexibility required by modern lighting fixture designs. The size of a match box, the Nuance 6 ballast, will operate a wide range of compact and linear lamps to suit many of your 120V ,277V or 347V applications. It can power up 1 or 2 lamps up to a 28W combination.Unlike many other ballasts on the market, the Nuance 6 is designed to operate lamps independently in a 2 lamp application. As a result, if a lamp is defective, the remaining lamp will stay on. It also allows to replace the defective lamp without power interruption. This feature will facilitate lamp maintenance.General Specifications9 Very small plastic casing9 Will power many type of lamps9 Input 120V, 277V or 347V 50/60Hz9 Instant start (120V), rapid start (277and 347V)9 High power factor >.99 UL (Class P) outdoor Type 19 End of lamp life (EOL) protection for277V and 347V models only Remote mounting: 7.6m (25ft)9 Maximum ambient temperature: 40�C9 Maximum casing temperature: 70�C (•tc)9 Minimum starting temperature: -10�C9 Ideal for infrequent on/off applications9 Can be relamped without power interruption9 Options available: Casing format RFI filter (120V only)9 Open cathode voltage: 415V9 Sound rating: A
